Vintage Fender Clay Dots

September 11, 2016

So many times you hear the term “clay dots” thrown out to reference the pre-CBS fender fret markers. Simply put, that’s what they look like is clay. And for many years people have thought of them as clay. I’ve heard about many luthiers re-fretting a vintage strat and putting a homemade paste mixture in there to simulate the original dots.

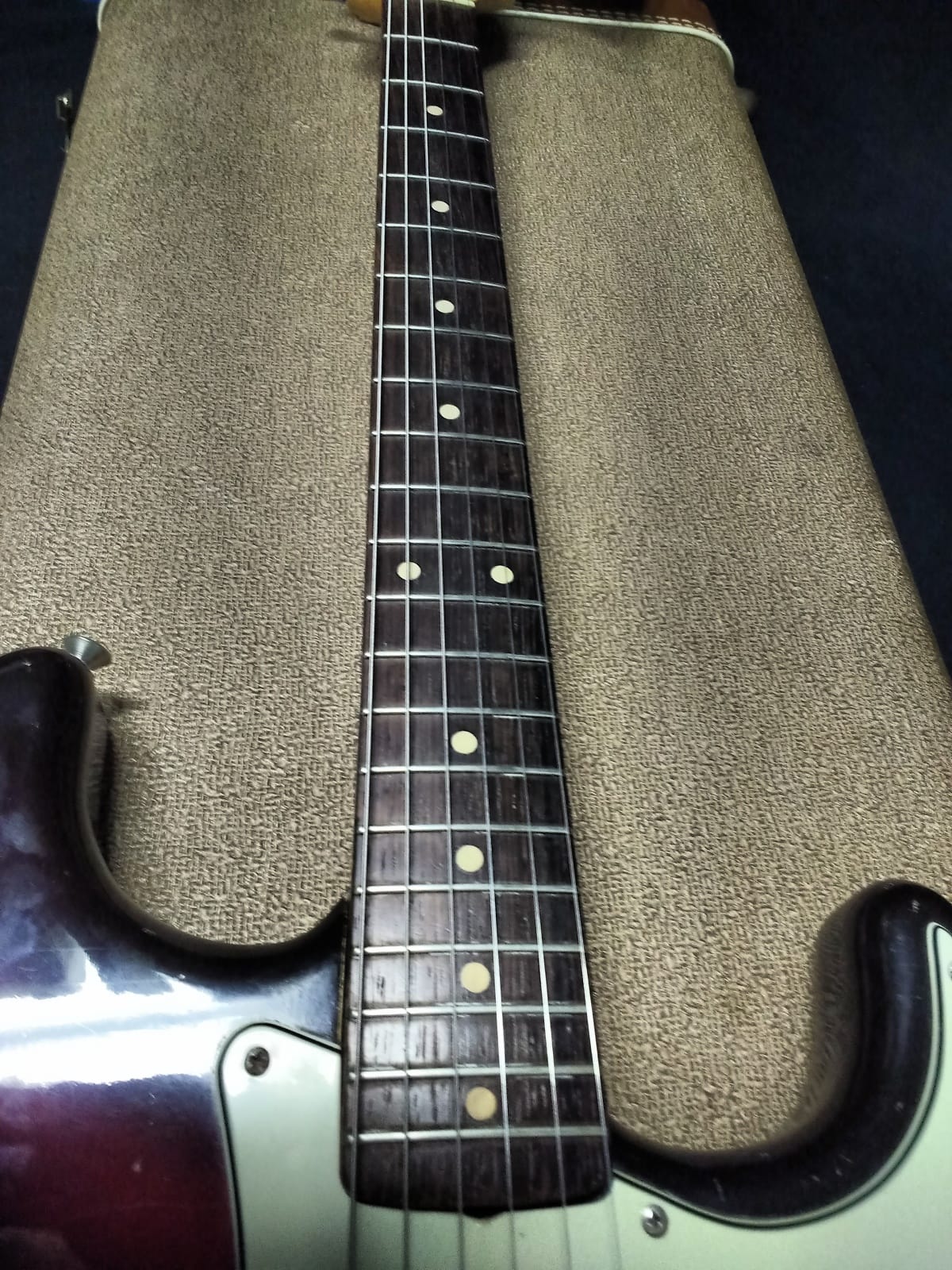

Ready for the true story? They are not clay at all. And they weren’t always yellowed or grayish colored either. At one time they were white as seen in the image below of a 1961 Stratocaster in great condition.

stratocaster-white-clay-dots

You can tell from that image that the last couple of dots are showing a little yellowing but the upper neck dots are still pretty white. The reason is that they are actually made from white vulcanized fiberboard. The image below is from around 1959 and shows a worker in the Fender factory with a huge Folder’s coffee can full of those white fiberboard cutouts putting them into slab board necks.

clay-dots-fender-factory-shot

The above image shows what looks to be Jazzmaster necks by the shape of the headstock. Also, the wide spacing at the 12th fret seems to indicate a time period of after mid-1959 (rosewood fretboard) and before July 1962 (slab rosewood fretboard).  Former musician and Fender plant manager Bill Carson once stated in an interview that the white dots in rosewood ´boards from 1959 to 1964 were installed the same way as the black dots prior to 1959 and that the material was fiberboard.

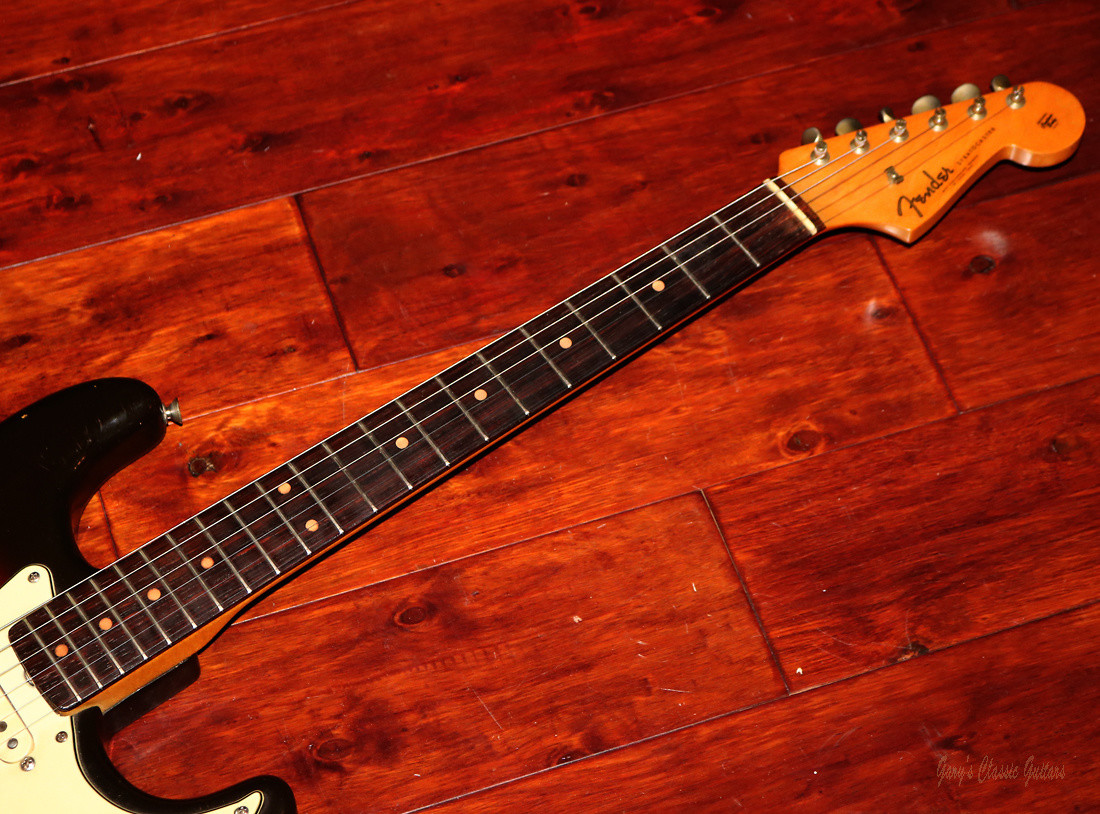

Here is what the dots normally look like after years of use. You can see how they really turn a yellow or even a rustic brown type of color.

yellowed-clay-dots

They become very yellowed and usually dirty from years of finger oils. The yellowing normally comes into play because of the cellulose in the material they used for the dots. They used a lot of cellulose back then. (The same material film used to be made from) The pickguards are made of celluloid nitrate. It’s a very flammable material which is why it was discontinued in the mid-60s by Fender. They went to a PVC based plastic called ABS that didn’t shrink and yellow like the cellulose and it wasn’t flammable like it either.

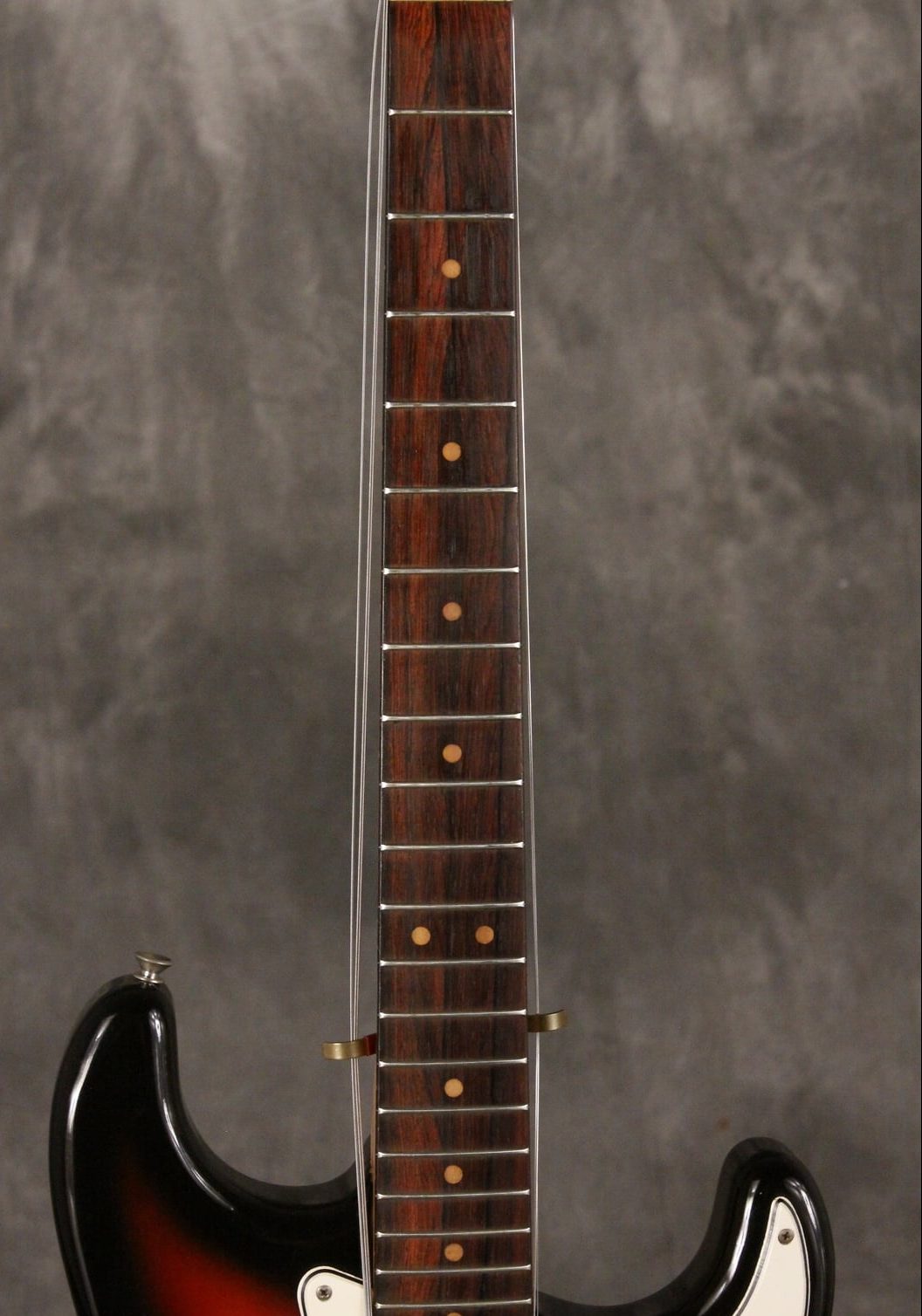

The “clay dots” were used for the most part from mid-1959 – late 1964. Although I’ve seen a few on very early 1965 Stratocasters. The pristine example listed below is a perfect example of that. She is a Jan 1965 and is a real beauty.

1965-stratocaster-clay-dots

As you can see the above guitar has it’s original frets so the dots are the originals. You can also see that the guitar has the newer 1965 white pickguard instead of the previous “mint green” version. Since those dots are made of a vulcanized fiberboard containing cellulose they tend to shrink like the pickguards of that era do. It’s not uncommon to see fret marker dots look like they are shriveling up into the hole cut for them. They are also fairly thin. So, if you sand the fretboard (Which I highly DO NOT recommend doing for any reason) when refretting the guitar you can actually sand through them.

9 Comments

  • Reply Robby Lapp September 27, 2018 at 4:13 am

    Awesome post but none of your pictures are displayed… 🙁

    • Reply visitorstoleads October 17, 2018 at 8:12 am

      Got them fixed. Sorry about that.

  • Reply Oliver Miao November 1, 2018 at 1:14 am

    It would be great if the pictures show correctly!

    • Reply visitorstoleads November 23, 2018 at 10:29 am

      Fixed

  • Reply Gregory C Grewell October 1, 2020 at 8:59 pm

    I was asked if my NOV 1964 Strat had clay or Pearl dots but not sure how to tell the difference. it seems they have a light crosshair grooves to them like they’ve been sanded or sawed in production. So it tends to look like pearl and not yellowed or brownish like clay. is there an easy test? dig into it to see if its soft? sounds destructive but not sure how to verify it. thanks

    • Reply Audiosway October 3, 2020 at 2:45 am

      The pearl dots will have a whiter and sparkly sort of look to them since they are made of pearloid. The original clay dots will have more of a dull yellow or brownish aged look.

    • Reply Greg Piette October 11, 2020 at 4:48 pm

      Why do you care again! Anyway the test is easy visually. Pearl dots would have an irredescent grain to them and they’d all be uniquely diefferent.

  • Reply Brendan December 7, 2020 at 5:22 pm

    Hi did you notice that there is two inconsistencies in this info and both in the picture with the coffee can.
    The necks in this photo are large headstcoks, so not pre cbs and the dots are very thick .
    So these are not fibre board dots being put in. The fibre board would have been thinner judging by the comments that they are very thin othrrwise they would have made them deeper. I guess with the whole swap the neck out thing they were not deep for that fact also.
    Anyways wrong necks wrong era.
    So that will leave it a mystery but we know it wasn’t clay as that is very labour intensive and just plain silly.

    • Reply Audiosway February 23, 2021 at 8:39 pm

      Actually, if you notice, I mention in the article that those are Jazzmaster necks. That’s why the headstock is slightly larger. Also, by the time CBS bought Fender they had switched over to using an abalone dot. The reason the dots are slightly thicker is due to them sanding down the fretboard after the installation. As a luthier you always put a dot in slightly thicker than the hole it’s going into.
